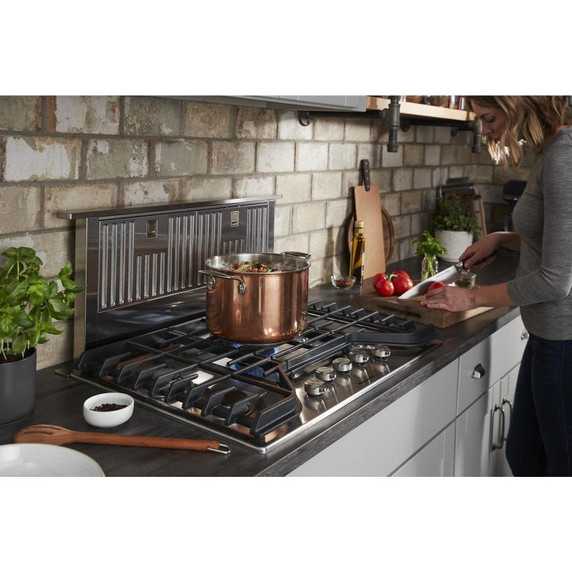

A 17K BTU multi-flame Burner and the 5K BTU Even-Heat™ Simmer Burner are two of five burners that make this 30-inch gas cooktop a workhorse for any kitchen. You'll love the feel of the multi-finish knobs and the continuous cast-iron grates that allow you to effortlessly move pots from one burner to another.
Features
Top 3 Features
17,000 BTU Multiflame BurnerWorks as an all-purpose professional burner, providing the ability to use both high- and low-temperature cooking methods so you can go from a boil to a simmer without changing burners.
5,000 BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
Electronic IgnitionAutomatically lights burners so no standing pilot light is needed
Additional Features
Full-Width Cast-Iron GratesEnhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Multi-Finish KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Specifications
Configuration and Overview
Specifications
Optional AccessoriesW10685483
Extended Service Plan ParentEW07IW1Y, EW07IW2Y, EW07IW4Y
Product To Product PairsKVUB400GSS, KVUB600DSS, KVWB400DSS, KVWB600DSS, KVWB600HBS, KXD4630YSS, UVL5430JSS
Features
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power Outage CompatibleYes
Heating Element On Indicator LightNo
GriddleNo, Optional Accessory
Refinements
Kad CooktopADA Compliant; Even-Heat Melt Burner
Description
Combinations With OvenKOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Details
Center Rear Element Burner TypeDual
Cooktop Element StyleSealed Burners
Center Rear Element Burner Power17000BTU
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power10000BTU
Right Front Element Burner Power9100BTU
